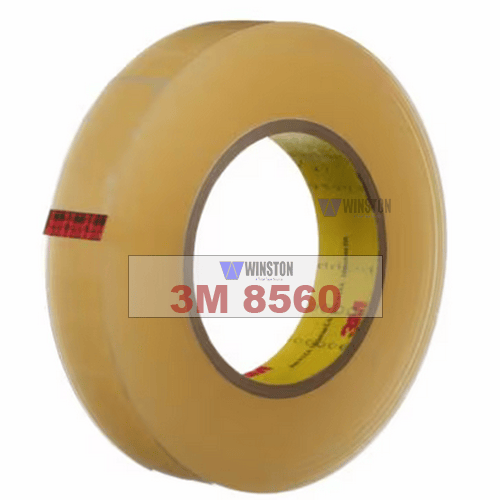

3M 8560 Polyurethane Protective Tape
3M 8560 Polyurethane Protective Tape is a 14 mil transparent indoor-grade polyurethane surface protection tape designed to protect aerospace and industrial surfaces from abrasion, erosion, puncture, tearing, corrosion, and minor impact damage.
3M 8560 Polyurethane Protective Tape, also known as 3M 8560 Transparent Surface Protection Tape, is engineered for demanding indoor aerospace, MRO, manufacturing, and industrial environments where surface integrity must be preserved. Its clear polyurethane construction allows the protected surface to remain visible for inspection while providing durable mechanical protection.
This 14 mil clear protective tape combines an abrasion-resistant polyurethane elastomer film with a pressure-sensitive natural rubber adhesive. The construction helps resist abrasion, erosion, puncture, tearing, scratching, corrosion, and minor impacts on metal, glass, painted surfaces, anodized aluminum, primers, and composite substrates.
3M 8560 is commonly used for leading edge erosion protection, high-wear surface protection, aerospace maintenance, aircraft production, industrial fabrication, component handling, and surface protection during manufacturing, assembly, shipping, and maintenance activities.
A polyethylene release liner protects the adhesive before use and supports controlled placement during production or maintenance operations. The conformable polyurethane film stretches over curved, contoured, and irregular surfaces, making it useful where visibility, durability, and surface conformity are all required.
Need pricing, availability, or a custom width? 3M 8560 Polyurethane Protective Tape is available in 36 yd rolls and widths from 1 in to 48 in. Contact Custom Tapes for current stock, lead time, roll quantity, case quantity, volume discounts, or custom converting options.
Key Features of 3M 8560 Polyurethane Protective Tape
- 14 mil total thickness for durable indoor surface protection
- Transparent polyurethane elastomer film keeps protected surfaces visible for inspection
- Helps resist abrasion, erosion, puncture, tearing, scratching, corrosion, and minor impacts
- Pressure-sensitive natural rubber adhesive provides strong initial tack
- Conformable construction works well on curves, contours, and complex geometries
- Polyethylene release liner supports controlled handling and placement
- Can be applied to many painted, primed, glass, metal, anodized aluminum, and composite surfaces
- Suitable for indoor aerospace, MRO, fabrication, manufacturing, and industrial maintenance applications
3M 8560 Product Specifications
| Product Name | 3M 8560 Polyurethane Protective Tape |
| Product Type | Transparent polyurethane surface protection tape |
| Color | Clear / transparent |
| Backing Material | Polyurethane elastomer film |
| Adhesive Type | Pressure-sensitive natural rubber |
| Liner | Polyethylene release liner |
| Film Thickness | 0.012 in (0.30 mm) |
| Adhesive Thickness | 0.002 in (0.06 mm) |
| Total Thickness | 0.014 in / 14 mil (0.36 mm) |
| Tensile Strength | 75 lb/in (1313 N/100 mm) |
| Elongation at Break | 400% |
| Maximum Service Temperature | 180°F (82°C) |
| Standard Roll Length | 36 yd (32.9 m) |
| Available Widths | 1 in to 48 in (2.54 cm to 122 cm) |
| Approximate Weight | 0.82 lb/yd² (447 g/m²), excluding liner |
| Shelf Life | 2 years from manufacture when stored properly |
| Recommended Environment | Indoor use only; avoid prolonged outdoor or UV exposure |
Why Use 3M 8560 Protective Tape?
Choose 3M 8560 when you need a clear, conformable polyurethane protective tape that can help prevent surface damage while still allowing visual inspection. It is especially useful for high-wear areas where abrasion, erosion, rubbing, handling, scratching, puncture, or minor impact damage can create rework, downtime, or part replacement costs.
Typical Applications
- Leading edge erosion protection on aircraft components and industrial parts
- Abrasion shielding for painted, primed, glass, metal, anodized aluminum, and composite surfaces
- Surface protection during manufacturing, assembly, shipping, handling, and maintenance
- Protection for high-wear zones exposed to rubbing, scratching, puncture, or minor impact
- Temporary transparent protection where surface visibility is required
- Indoor aerospace, MRO, industrial maintenance, fabrication, and production environments
Compatible Surfaces
3M 8560 can be used on many clean, dry, smooth surfaces, including glass, anodized aluminum, painted surfaces, primers, metals, and composite materials. Because surface coatings, dwell time, and environmental conditions can affect adhesion and removability, testing on the actual substrate is recommended before full production use.
Aerospace and Industrial Use Notes
3M 8560 is commonly selected for indoor aerospace and industrial applications requiring transparent surface protection. It can support aircraft production, maintenance, fabrication, and component handling where leading edges, exposed surfaces, and high-wear areas need protection from abrasion, erosion, tearing, puncture, and minor impacts.
Handling and Installation Guidance
Apply 3M 8560 to clean, dry surfaces at approximately room temperature. Press firmly during application to promote full adhesive contact, especially over curves, edges, and contoured surfaces. Test first on painted or sensitive surfaces before full-scale use.
Operating Environment Notes
3M 8560 is intended for indoor use only. Avoid prolonged exposure to ultraviolet light, outdoor conditions, or temperatures beyond the rated service limit of 180°F (82°C).
Why Buy 3M 8560 from Custom Tapes?
Custom Tapes helps aerospace, MRO, industrial, fabrication, and maintenance buyers source 3M protective tapes by product number, width, roll length, and application requirement. Contact us for help confirming the right width, quantity, availability, custom converting option, or surface protection tape for your application.
Frequently Asked Questions
What is 3M 8560 Polyurethane Protective Tape used for?
3M 8560 is used to protect indoor aerospace and industrial surfaces from abrasion, erosion, puncture, tearing, scratching, corrosion, and minor impact damage. Common uses include leading edge protection, aircraft maintenance, fabrication, MRO work, and high-wear surface protection.
Is 3M 8560 suitable for outdoor or UV exposure?
3M 8560 is designed for indoor applications and should not be used where prolonged UV or outdoor exposure is expected.
What is the thickness of 3M 8560 tape?
3M 8560 has a total thickness of 0.014 in, or 14 mil, including a 12 mil polyurethane film and a 2 mil pressure-sensitive natural rubber adhesive.
What surfaces does 3M 8560 adhere to?
The natural rubber adhesive bonds well to many clean, dry surfaces, including glass, anodized aluminum, painted surfaces, primers, metals, and composite materials. Testing is recommended before production use.
Can 3M 8560 be used on painted surfaces?
Yes. 3M 8560 can be applied to many painted surfaces and may be painted over in some applications. Always test first, especially on sensitive, freshly painted, or specification-controlled surfaces.
Can 3M 8560 conform to curved surfaces?
Yes. The conformable polyurethane film stretches over curved, contoured, and irregular surfaces when applied with proper pressure and surface preparation.
Can 3M 8560 be removed after use?
Yes. The tape can be removed by slowly peeling it back. Removability can depend on surface type, dwell time, temperature, and application conditions, so testing in a non-critical area is recommended before full application.
What is the recommended application temperature?
For optimal adhesion, application is recommended at approximately 70°F (21°C) on clean, dry surfaces.
What widths are available for 3M 8560?
3M 8560 is available in widths from 1 in to 48 in with a standard roll length of 36 yd. Contact Custom Tapes to confirm current width availability, roll quantity, and custom converting options.
Is 3M 8560 suitable for aerospace applications?
Yes. 3M 8560 is commonly used in aerospace production and maintenance environments for indoor surface protection and leading edge protection. For specification-driven programs, confirm the required product number, width, certification needs, and application requirements before ordering.
AI Overview
3M 8560 Polyurethane Protective Tape is a 14 mil transparent indoor-grade polyurethane surface protection tape with a pressure-sensitive natural rubber adhesive. It is designed to protect aerospace, MRO, manufacturing, and industrial surfaces from abrasion, erosion, puncture, tearing, corrosion, scratching, and minor impacts while allowing the protected surface to remain visible.
