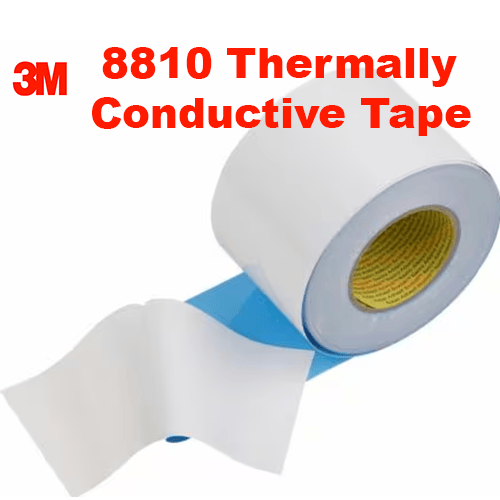

3M 8810 Thermally Conductive Adhesive Transfer Tape
3M 8810 Thermally Conductive Adhesive Transfer Tape provides a stable adhesive interface for applications requiring a consistent heat-transfer path. It supports component-to-cooler attachment in compact electronic assemblies without adding bulk. 3M 8810 Thermally Conductive Adhesive Transfer Tape is part of the 3M 8800 series and is designed to help create a preferential heat-transfer path between heat-generating components and cooling hardware. The tape features a filled acrylic polymer construction and a dual liner that supports ease of handling. With a nominal thickness of 0.25 mm, it integrates smoothly into assemblies that require a thin adhesive layer. Its ceramic-filled design and white appearance offer a consistent material interface suitable for various electronic component surfaces. Other variations in the series, including 8805, 8815, and 8820, are available upon request. • Tape type: Filled acrylic polymer • Color: White • Thickness: 0.25 mm (10 mils) • Filler type: Ceramic • Dual PET liner: Clear easy-release liner and blue tight-side liner • Designed for heat-transfer paths between components and cooling devices • Part of the 3M 8800 series; other thickness variants available upon request :contentReference[oaicite:1]{index=1} • Thermal impedance: 5.8 °C cm²/W (0.9 °C in²/W) • Thermal conductivity: 0.60 W/m-K • Specific gravity: 1.07 g/cc • Surface resistivity: 1.6 × 10¹¹ Ω-cm • Volume resistivity: 3.9 × 10¹¹ Ω-cm • 90° peel (room temp, 15-min dwell, untreated aluminum): 1300 g/25.4 mm • Dielectric strength: 26 kV/mm (estimated per series data) • Shelf life: 24 months when stored at 22°C and 50% RH in original packaging :contentReference[oaicite:2]{index=2} The 3M 8810 tape is compatible with rigid or flexible substrates when appropriate cleaning and pressure-application procedures are followed. Application techniques such as squeegee lamination or controlled compression can support effective surface wetting. Other series options, including 8805, 8815, and 8820, may be requested when alternate thicknesses are preferred. Consider this 3M 8810 tape for assemblies requiring a thin adhesive layer that supports consistent thermal interface placement. Tags: thermal adhesive tape, 3M 8810, heat transfer tape, electronic assembly supplies, adhesive transfer tape Category: Thermal Interface Materials Variant Options: 8805, 8815, 8820 available upon request
