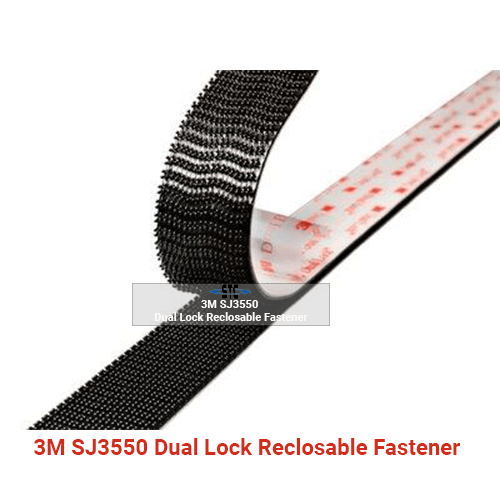

3M SJ3550 Dual Lock Reclosable Fastener

3M SJ3550 Dual Lock at a Glance

• Type 250 stem density reclosable fastener
• Heavy-duty acrylic VHB adhesive backing
• Replaces screws, rivets, and bolts
• Suitable for indoor and outdoor use
• Supports up to 2.2 lbs/in² static load
• Rated for 1,000+ open/close cycles
• Available by the yard

Why Choose 3M SJ3550 Instead of Hook and Loop?

• 5x Stronger: Up to 5x greater tensile strength than standard hook-and-loop fasteners.
• Zero Fraying: Rigid polyolefin stems maintain physical geometry over 1,000+ cycles.
• Hidden Aesthetics: Creates clean, non-destructive fastening lines without visible hardware.
• No Mechanical Drilling: Eliminates holes, rust risks, and localized stress concentrations.

Best Applications

• Vehicle trim panels and headliners
• Access panels and maintenance hatches
• Digital signage and retail displays
• Industrial equipment component mounting
• Electronics and control module installation

Quick Specifications

Specification	Value
Stem Density	Type 250 (Approx. 250 stems/sq. in.)
Color	Black
Adhesive Type	High-Performance Acrylic VHB Foam
Operating Temp	-20°F to 158°F (-29°C to 70°C) continuous
Short-Term Temp	200°F (93°C) peak tolerance
Cycle Life	1,000+ closures (retains ≥ 50% tensile holding power)

What is 3M SJ3550 Dual Lock?

The 3M SJ3550 Dual Lock reclosable fastener replaces traditional mechanical fasteners like rivets, screws, and bolts in high-stress industrial applications. This high-performance fastening system relies on a continuous polyolefin backing populated with rigid, mushroom-shaped stems that audibly snap together to form a secure structural joint. Utilizing an advanced acrylic VHB adhesive backing, it offers non-destructive hidden fastening with exceptional long-term holding power.

Interlocking Mushroom Head Dynamics and Type 250 Stem Density

The operational mechanics of this fastener depend on a specific stem arrangement designated as Type 250 stem density. This designation indicates approximately 250 mushroom-shaped heads per square inch (645 mm²). When two pieces of the fastener are pressed together, the heads slide past each other and interlock. This creates a high-tensile closure that resists multidirectional shear forces.

Unlike hook-and-loop systems that degrade rapidly through fiber fraying, these polyolefin stems retain physical geometry over long-term usage cycles. The engagement mechanism allows for blind fastening, where components align and lock without direct visual confirmation from assembly personnel. Specifying Type 250 stem density configurations ensures the optimal standard balance of high tensile holding power and clean manual extraction capability.

Pressure Sensitive Acrylic Foam VHB Tape and Substrate Adhesion Physics

The reverse side of the polyolefin backing features a high-performance, white acrylic closed-cell foam tape. This tape utilizes an aggressive acrylic VHB adhesive formula designed to bond with high surface energy (HSE) substrates. The viscoelastic properties of the foam core allow the adhesive layer to flow into microscopic surface irregularities, maximizing the true contact area.

The foam core dynamically absorbs mechanical shocks, distributes localized stress across the entire bond area, and compensates for thermal expansion differentials between dissimilar materials. Achieving absolute bond reliability on raw aluminum or polycarbonate plates requires clear structural visibility into how pressure-sensitive acrylic foam adhesives cross-link with substrates over a stable 72-hour dwell cycle.

Common Applications for 3M SJ3550 Dual Lock

Engineering long-term component attachments requires a precise understanding of the load thresholds, environmental tolerances, and fatigue profiles governing polyolefin fastener structures across diverse industrial sectors.

• Transportation & Automotive: Securing interior headliners, trim panels, components, and electronic toll transponders.
• Industrial Equipment: Attaching access panels, acoustic damping panels, and removable machinery guards without drilling holes.
• Electronics & Digital Signage: Mounting displays, power supplies, LED drivers, and control modules cleanly.
• Exhibits & Access Panels: Fastening retail point-of-purchase (POP) displays, trade show booth graphics, and architectural panels.

Shear Strength and Tensile Limits Under Continuous Loading

The interlocking stem matrix provides high structural resistance against both dynamic tensile forces perpendicular to the plane and shear forces parallel to the surface. Dynamic tensile strength reaches equilibrium at 40 lbs/in² (27.6 N/cm²), while dynamic shear capacity matches this performance at 40 lbs/in².

Static load holding power depends heavily on environmental temperatures. Designers must calculate structural safety margins using a conservative loading factor. For continuous static loads, use an operational guideline of no more than 2.2 lbs (1 kg) of load per square inch of fastener area. This safety margin mitigates the risk of material creep under constant weight.

Thermal Thresholds and Environmental Degradation Profiles

The acrylic adhesive and polyolefin backing perform consistently across a wide operating temperature envelope. The continuous temperature rating spans from -20°F (-29°C) up to 158°F (70°C). For brief exposures, such as vehicle paint-baking cycles or localized thermal spikes, the system tolerates intermittent temperatures up to 200°F (93°C).

The closed-cell configuration of the acrylic core makes the joint highly resistant to moisture, humidity, and direct UV radiation. The synthetic formulation resists plasticizer migration from underlying vinyl substrates, preventing the premature adhesive softening that typically causes standard rubber-based tapes to fail.

3M SJ3550 vs Hook and Loop Fasteners

While traditional hook and loop fasteners serve low-cycle consumer goods, industrial manufacturing demands the rigid architectural baseline of a reclosable fastening system. The table below outlines the structural performance gaps between standard hook and loop closures and 3M Dual Lock technology.

Performance Metric	Standard Hook and Loop	3M SJ3550 Dual Lock
Holding Strength	Low to Medium; prone to peeling under high shear stresses.	Up to 5x greater tensile strength; high multidirectional shear resistance.
Cycle Life Degradation	High; fibers fray, stretch, and collect debris rapidly over time.	Minimal; rigid polyolefin stems maintain exact geometry over 1,000+ cycles.
Mating Engagement	Soft, silent, and flexible engagement connection.	Rigid, continuous backing with an audible snap verifying lock.
Adhesive Type	Typically thin, light-duty rubber or general-purpose acrylic adhesive.	Heavy-duty, viscoelastic closed-cell acrylic VHB foam tape.

Stem Density Pairing Variations for Multi-Tier Custom Extraction Force

Type 250 stem density configurations serve as the benchmark standard for balanced industrial assembly. However, the system allows for modified mating configurations to achieve specific separation forces.

• Type 250 to Type 250: The standard operational combination. Delivers high tensile holding power with manageable manual separation force.
• Type 250 to Type 170: Provides a lower density pairing. This combination reduces the physical engagement force needed for assembly and lowers the extraction force, making it ideal for access panels requiring frequent maintenance.
• Type 250 to Type 400: Increases total interlocking points. This pairing significantly raises ultimate tensile strength but makes manual non-destructive disassembly highly difficult.

Mating Type 170 directly to Type 170 provides insufficient stem engagement, leading to joint instability. Combining Type 400 with Type 400 creates excessive engagement density, often causing physical stem tearing during disassembly attempts.

Linear Yield Mathematics and Purchasing Optimization by the Yard

When purchasing industrial fasteners by the yard, procurement calculations must account for the dual-sided nature of reclosable joints. For low-volume prototyping or customized specialty vehicle retrofits, purchasing industrial fasteners by the yard eliminates bulk product waste while preserving precise technical specifications. The product is manufactured and sold as a single-sided roll. To create a functioning closure, the strip must be cut and mated to itself.

The functional length equals the total ordered linear yards multiplied by three, then divided by two. An order of 10 linear yards provides 30 linear feet of single-sided material. When applied to an assembly line, this yields exactly 15 linear feet of complete, mated structural closure. Designers must factor this 50% linear yield conversion into bills of materials to prevent component shortages during production runs.

Industrial Substrate Integration and Surface Preparation Protocols

Adhesive performance depends directly on the cleanliness and surface energy of the target substrate. The pressure-sensitive adhesive layer requires specialized prep steps to ensure predictable chemical cross-linking.

Substrate Classification	Compatible Material Types	Preparation Protocol Required
High Surface Energy (HSE)	Aluminum, Stainless Steel, Copper, Glass, Acrylic	Isopropyl Alcohol (IPA) / Water Wipe (50:50)
Medium Surface Energy (MSE)	Polycarbonate, ABS, Polystyrene, Rigid PVC	Light Abrasion + IPA Cleanse
Low Surface Energy (LSE)	Polyethylene, Polypropylene, Powder Coats	Specialized Adhesion Promoter (3M AP111)

The pressure-sensitive adhesive requires an initial application pressure of at least 15 lbs/in² (10 N/cm²) via a high-density roller or press mechanism. This mechanical pressure initiates wet-out, forcing the adhesive into the substrate microstructure.

Adhesive cross-linking is time-dependent. Initial adhesion reaches approximately 30% of ultimate bond strength immediately after pressure application. The joint reaches 70% strength at 20 minutes, 90% at 24 hours, and achieves full 100% molecular cross-linking after a 72-hour dwell cycle at 70°F (21°C).

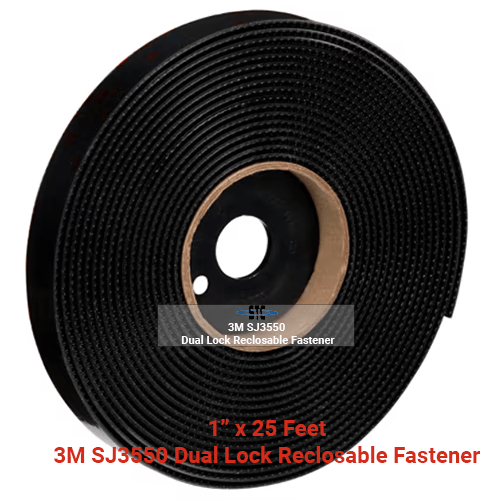

Available Sizes and Roll Lengths (Product Specifications)

The following structural baseline details govern the deployment of the SJ3550 system across product assemblies.

Specification Parameter	Value	Measurement Standard
Product Color	Black	Visual
Stem Density	250 Stems / Sq. Inch	Nominal Count
Engaged Thickness	0.23 Inches (5.8 mm)	±10% Variance
Adhesive Type	General Purpose Acrylic VHB Foam	Closed-Cell Foam
Liner Type	Clear Polyolefin Film	Silicone Release Coating
Weight Capacity	2.2 lbs/in² Max	Continuous Static Load
Cycle Life	1,000+ Closures	Retains ≥ 50% Tensile

Frequently Asked Questions

What is the precise physical difference between SJ3550, SJ3551, and SJ3552?

The primary difference lies entirely in the stem density configuration per square inch. SJ3550 utilizes Type 250 stem density, SJ3551 utilizes Type 400 stem density, and SJ3552 utilizes Type 170 stem density. All three models utilize the exact same clear-engineered pressure sensitive acrylic foam VHB adhesives on their backings.

Can this fastener system be successfully attached to textured interior plastics?

Adhesion to textured plastics depends on depth profile variance. Light textures can be bridged by the thick, viscoelastic acrylic foam core. Deep textures reduce the effective contact surface area below safe thresholds, requiring a liquid adhesion promoter or physical smoothing of the attachment zone.

Does exposure to commercial solvents or automotive fluids cause adhesive failure?

The cross-linked acrylic foam core resists splash exposure from common industrial fluids including gasoline, diesel fuel, motor oil, and standard isopropyl alcohol cleaning solutions. Continuous immersion in aromatic hydrocarbons or ketones will cause adhesive edge-softening and subsequent bond failure.

How should the backing liner be removed to prevent edge delamination?

Peel the clear protective polyolefin liner back at a sharp 180-degree angle relative to the tape surface. Avoid lifting the liner straight upward at a 90-degree angle, as vertical pulling forces can introduce micro-fissures along the adhesive edge before substrate mating occurs.

What causes the stems to occasionally shear off during manual separation cycles?

Stem shear occurs when the adhesive bond strength to the substrate exceeds the structural yield limit of the polyolefin stems. This typically happens when mating Type 400 to Type 400, or when attempting separation at angles that concentrate extreme leverage on a single row of stems.

Operational Evaluation and Structural Conclusion

The 3M SJ3550 Dual Lock reclosable fastener provides an engineered solution for high-strength, repeatable component attachment across manufacturing sectors. By optimizing stem density pairings, respecting the 72-hour adhesive cross-linking dwell cycle, and accounting for the 50% conversion yield when buying by the yard, engineering teams can implement hidden fastening joints that improve both product appearance and assembly line efficiency. Fully evaluating substrate surface profiles remains a critical step to ensure uniform adhesion performance across production lots.
